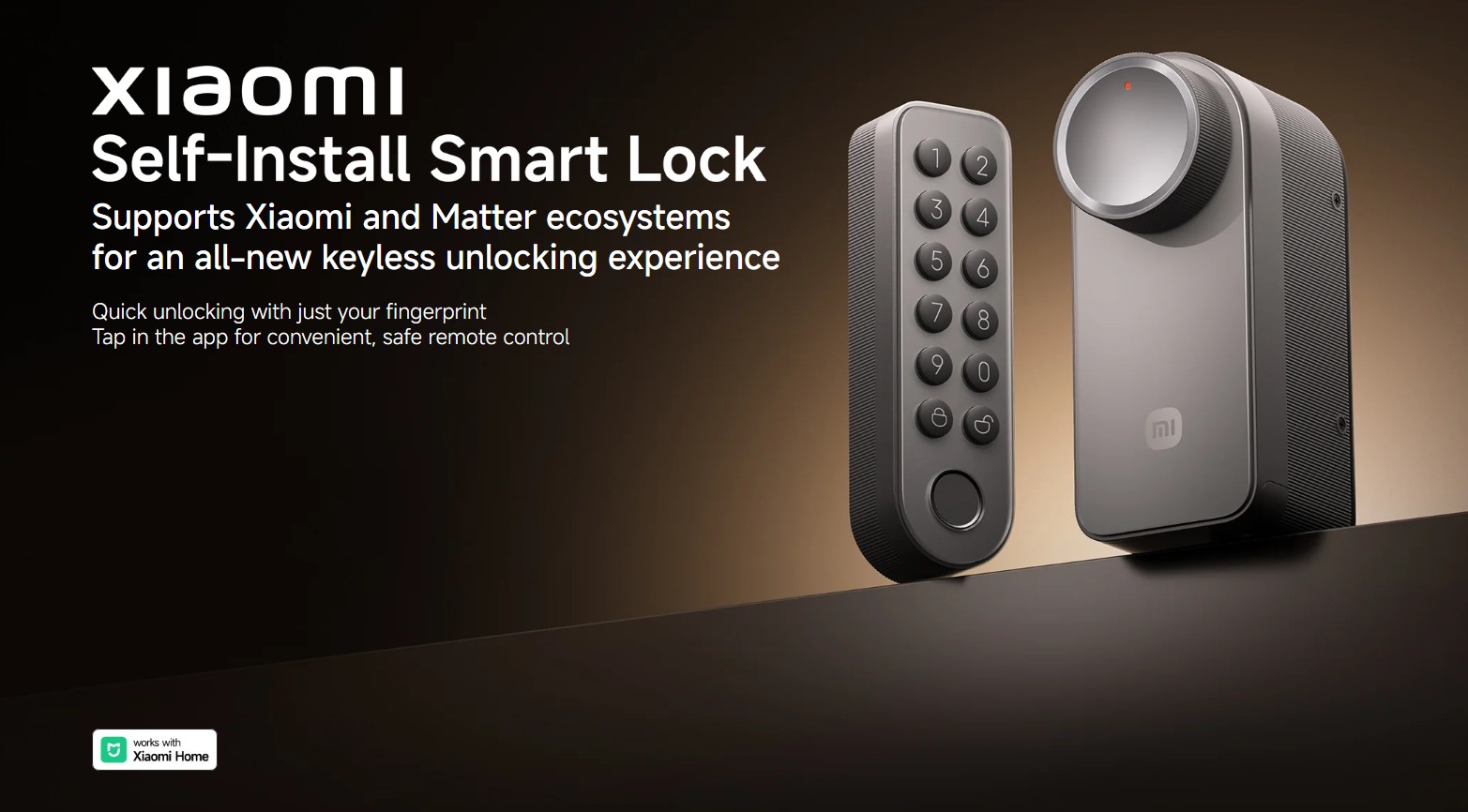

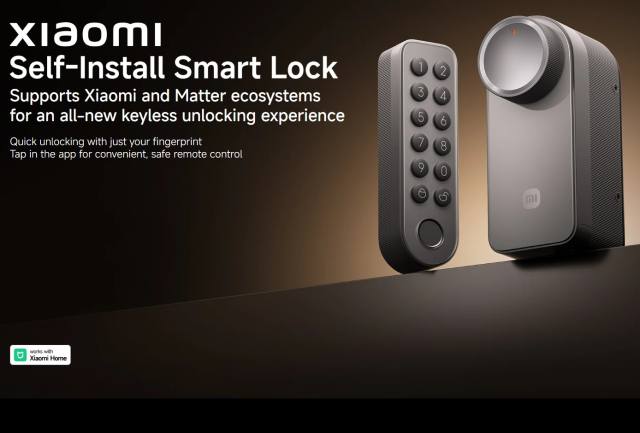

Xiaomi Self-Install Smart Lock

Specifications
Product nameSmart Lock
ModelXMZNMSEU2LD (Keypad: XMZNMSKP1LD)
MaterialsABS + PC
Operating Temperature-10°C to 55°C
Operating Humidity0–93% RH, no condensation
Lock
Item Dimensions141 × 60 × 59mm (Length, width, height)
Net Weight538g
BatteryLithium-ion Battery
Nominal Voltage7.2Vdc
Rated Capacity2450mAh
Thread Wireless ConnectivityIEEE 802.15.4
Bluetooth Wireless ConnectivityV5.0
Wi-Fi Wireless ConnectivityIEEE 802.11 b/g/n/ax
Keypad
Item Dimensions133 x 40 x 29mm (Length, width, height)
Net Weight147g
BatteryAA battery x2
Bluetooth Wireless ConnectivityV5.0

Notes:
*After the smart lock is installed, it is recommended to keep the mechanical key in a secure outdoor location for emergency use.
*This lock is intended only for lock control and is not designed for anti-theft purposes. We are not responsible for any accidents or damage occurring after installation that are not caused by quality issues with the lock.
*Product images, model numbers, data, features, performance, specifications, user interface and other product information on this page are for reference only. Xiaomi may make improvements to the above content. Please refer to the actual product and its usage for details.
*Unless otherwise specified, all other data on this page comes from internal laboratory tests. Actual usage may vary due to different external conditions. Please refer to the actual experience.

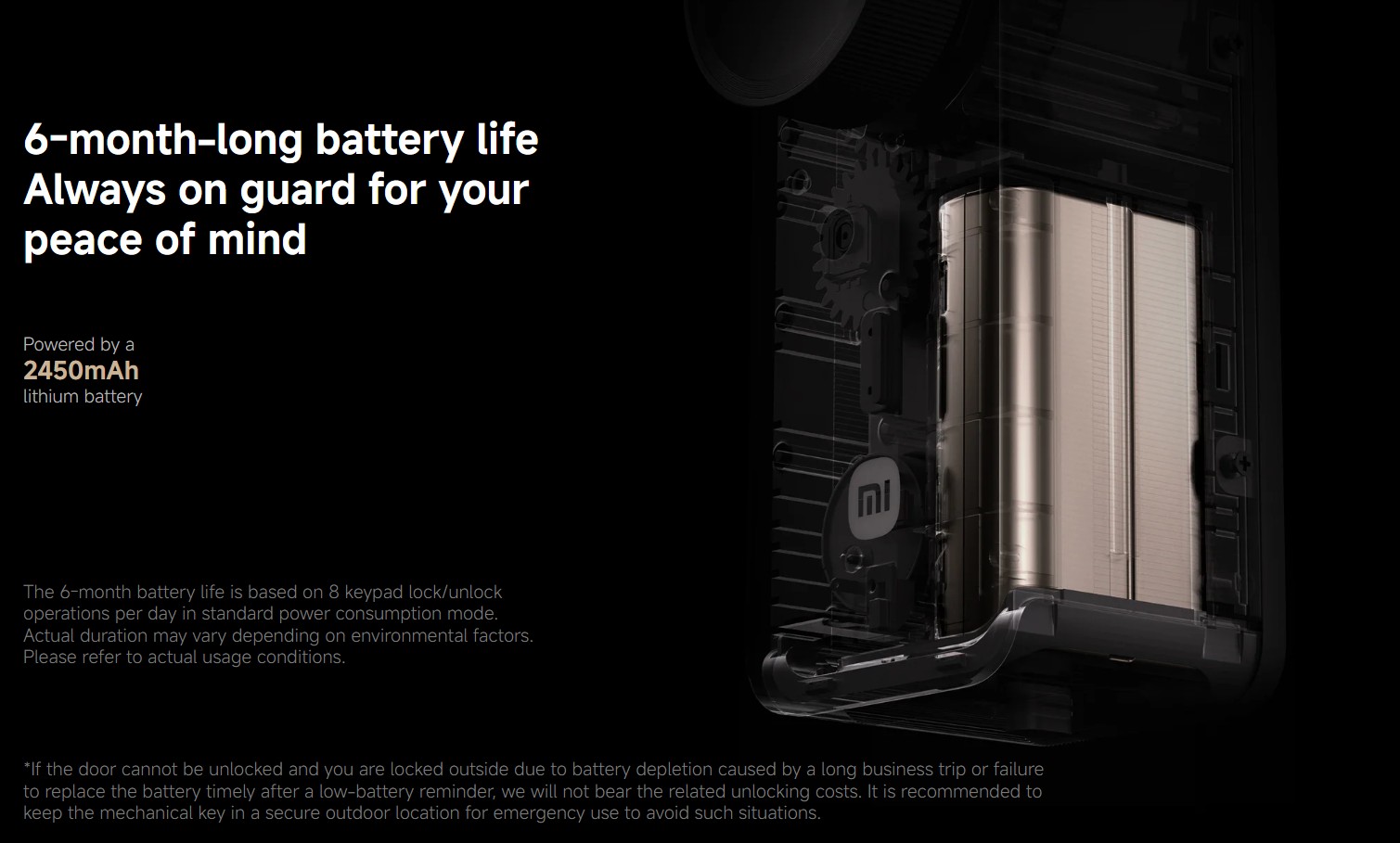

*The lithium battery lasts for 6 months based on standard usage of 10 lock/unlock cycles per day at 25°C. Actual battery life may vary depending on usage conditions. Battery performance decreases in low temperatures, resulting in a shorter battery life. Please refer to actual usage.

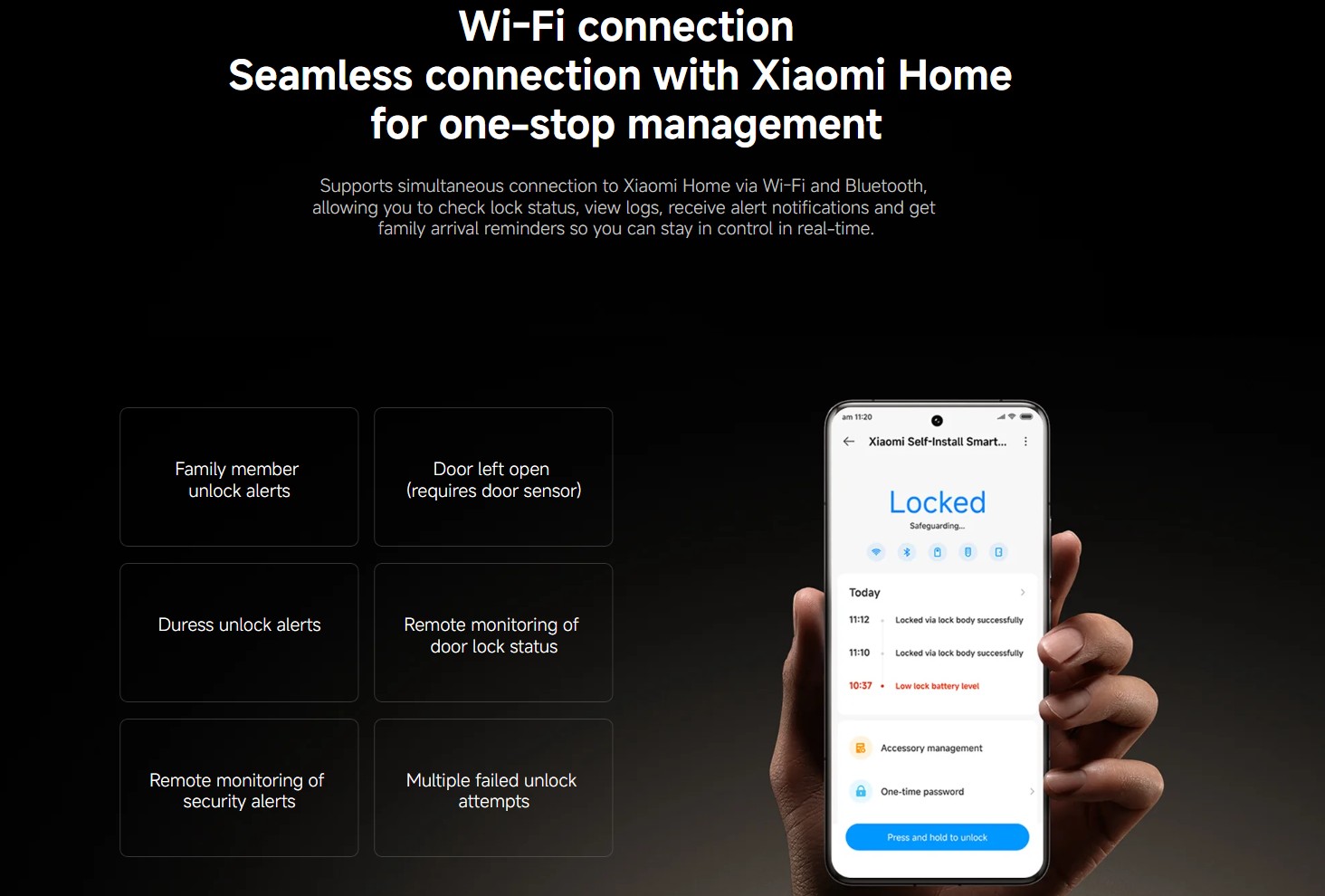

*To view the smart lock's logs remotely and receive abnormal alerts, call notifications, low battery reminders and so on, ensure the lock is connected to Wi-Fi or that your phone maintains a Bluetooth connection.
*The smart lock's fingerprint recognition supports users aged 7 to 70, covering most people. However, some elderly or young children may experience low recognition rates or failed scans due to underdeveloped or worn fingerprints — a common issue with fingerprint technology.

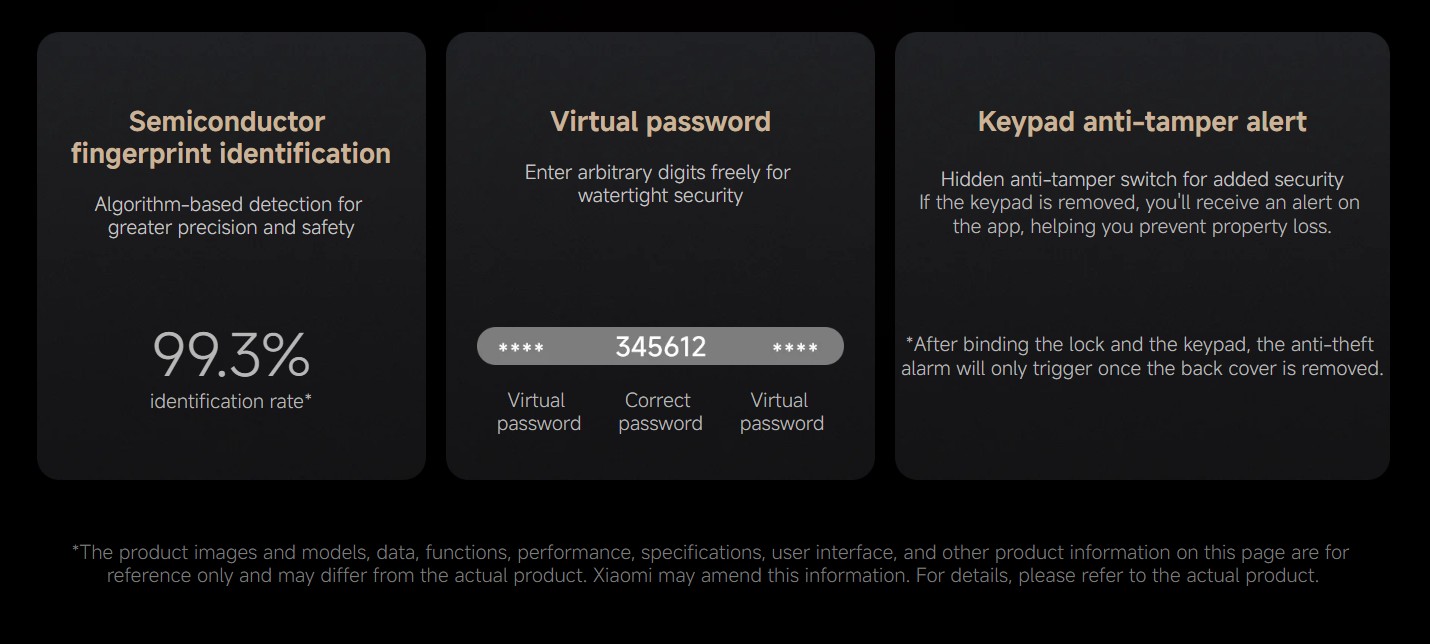

*The smart lock's fingerprint recognition rate of 99.3% was tested at room temperature (around 26°C) using an in-house algorithm with a database of 1,000 fingerprints, each collected 20 times, totaling 20,000 genuine match attempts. The false rejection rate was 0.7%.
*The 48-hour salt spray test was conducted in a salt solution concentration of (5±0.1)%, at a temperature of (35±2)℃. The spraying cycle was 15 minutes every 45 minutes, with a salt spray deposition rate of 1.0mL/(h·80cm²) to 2.0mL/(h·80cm²). After 96 hours of continuous testing, the smart lock still functioned normally, and the keypad surface showed no signs of rust.
*Anti-tamper, anti-pry protection: When the Xiaomi Self-Install Smart Lock keypad is pried up, it will emit a warning sound and send an instant alert notification.

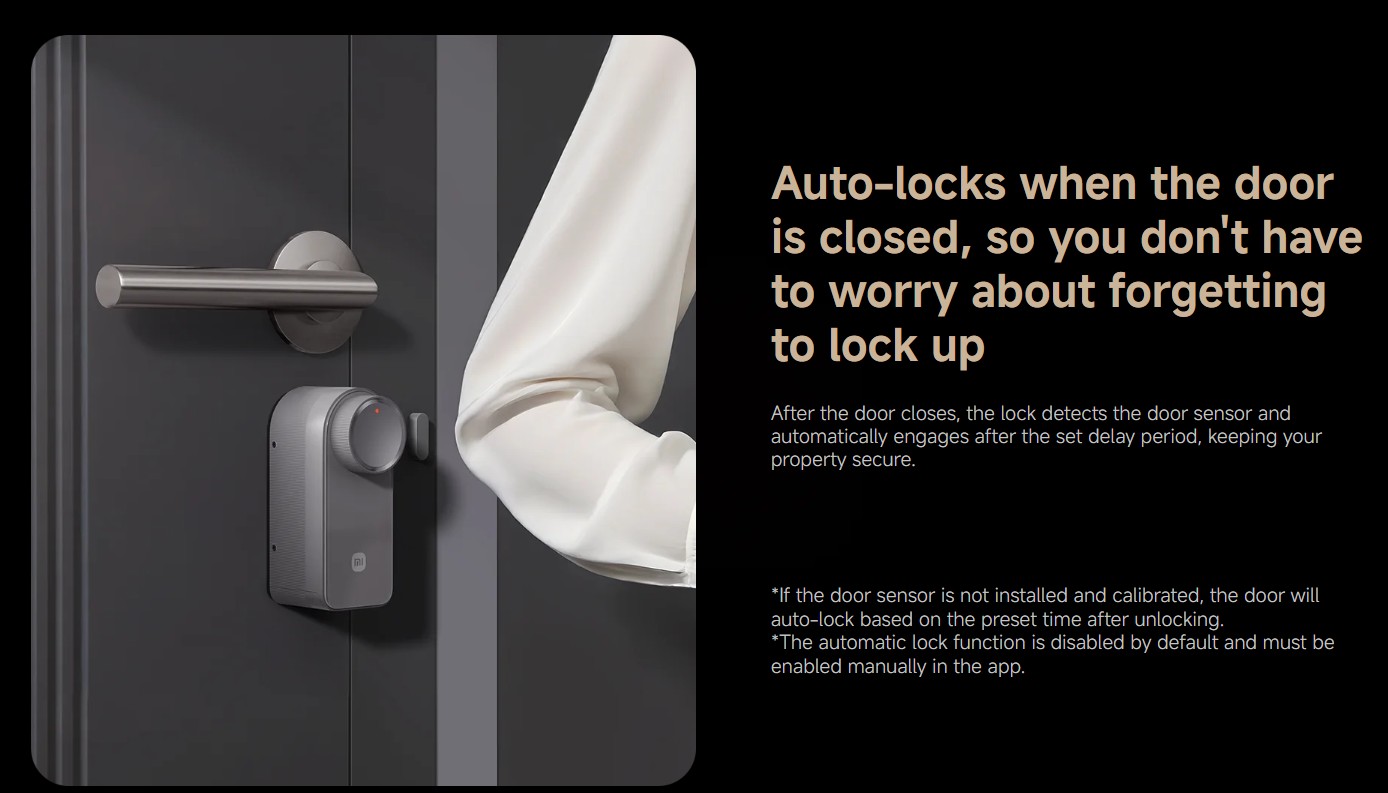

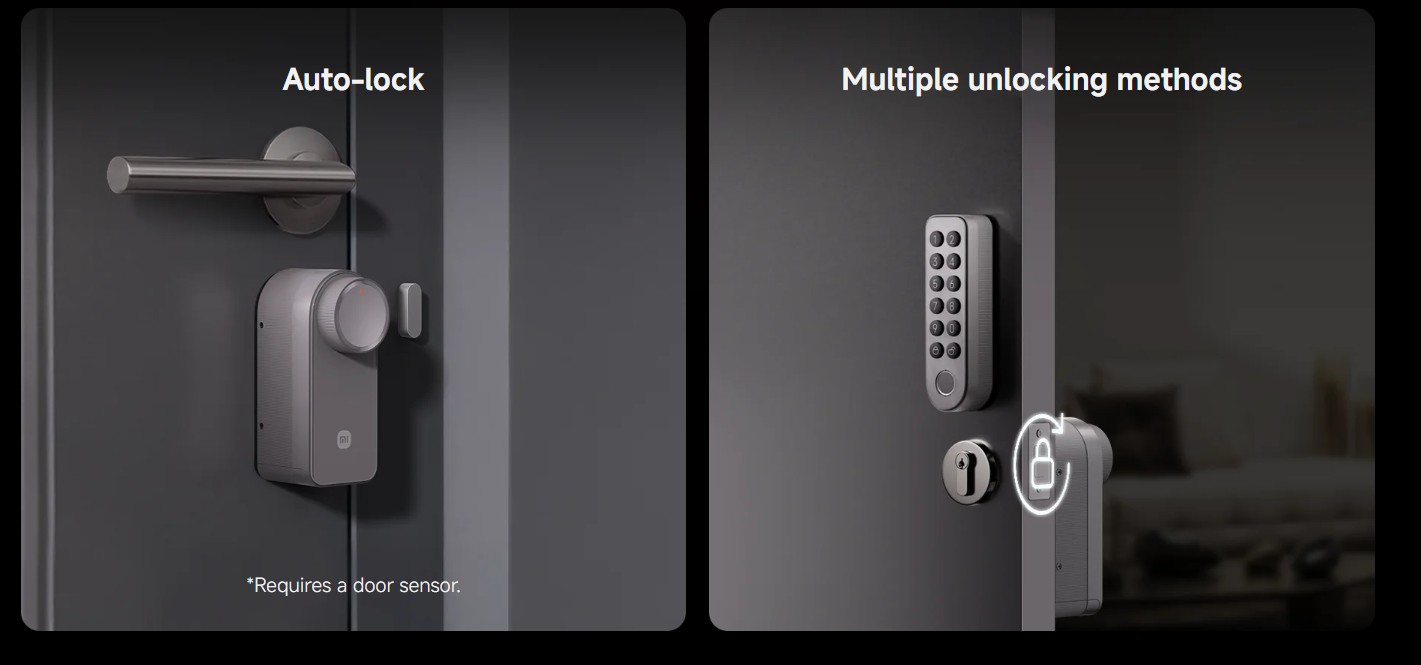

*Auto-lock requires the use of a door sensor. Without the door sensor, only scheduled auto-lock is available.
*The lock has passed 100,000 open-and-close cycle tests, simulated mechanically to replicate manual use. Data comes from Lingdu Laboratory.
*Voice unlock requires pairing with a third-party smart speaker that supports Matter. For an optimal user experience, it is recommended to use devices bound through Mi Home.
*The lock is not waterproof. Please use in a dry environment.

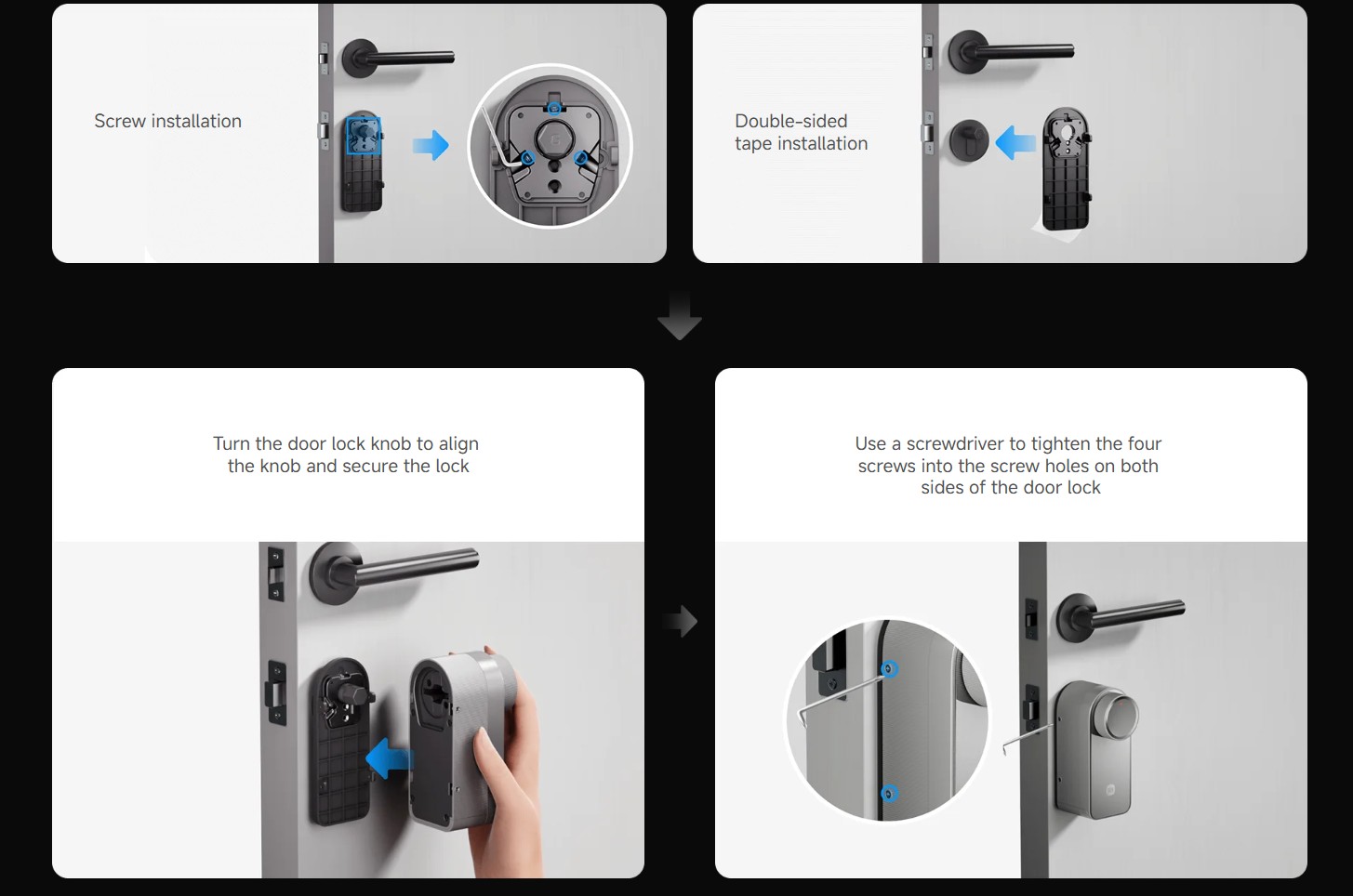

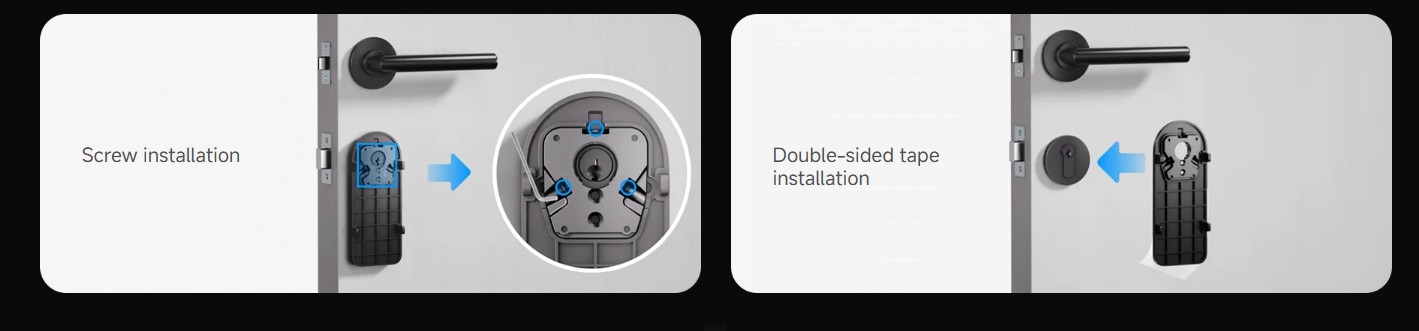

*When hanging or sticking the product, ensure you press and hold for approximately 60 seconds to ensure proper adhesion.
*After adhesive installation, to avoid damage to the product or wall surface, do not forcibly remove the product. If removal is necessary, it is recommended to soften the adhesive by heating it with a hairdryer first before carefully peeling it off.
*The operating temperature range of this product is -10°C to 55°C. Using it outside this range may damage the device.
*The operating humidity range of this product is 0% RH to 93% RH. Please avoid using it in high-humidity or harsh environments.
*This product is not a toy and contains small parts. Please keep out of reach of children to prevent choking or other hazards caused by accidental ingestion of small components.
*Do not throw the battery into fire or high-temperature furnaces, or mechanically crush or cut the battery, as this may cause an explosion.
*If the battery compartment does not close securely, stop using the product and keep it away from children.
*After the keypad batteries are depleted, replace them with alkaline AA batteries. Using incorrect battery types may pose an explosion risk.
*We are not responsible for any damage caused by natural disasters (such as earthquakes, lightning strikes, typhoons, and floods), fires not resulting from the lock, third-party actions (such as dropping or vibration during transportation or installation), intentional or negligent misuse by customers (exposure to direct sunlight, wind, or rain), or other abnormal usage conditions.
*We are not responsible for any damage or paint peeling caused by forceful removal that does not follow the instructions.
*We are not responsible for any issues arising from unauthorized repairs, adjustments, modifications, or the use of counterfeit products for installation, reinstallation or modification.
*We are not responsible for any accidental damage caused by the use or inability to use this lock (including but not limited to changes or loss of stored data, loss of commercial profits, business interruption, theft of property, or being locked outside due to battery depletion).
*We are not responsible for any damage caused by failure to follow the instructions in the user manual.
