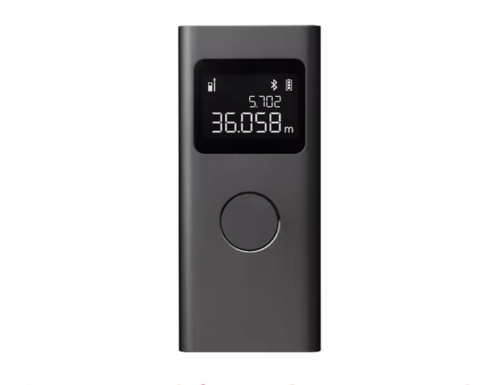

XIAOMI Mijia Smart Laser Rangefinder

Please note :

At present, this router is only Chinese version. When you connect to the Mi Home APP, you need to change the region to Chinese Mainland. Thank you.

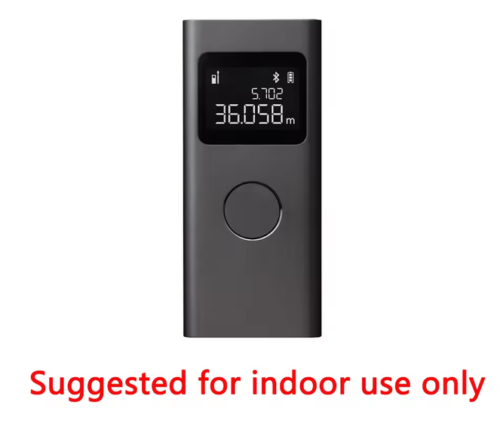

This product is recommended for indoor use only. Outdoor use may be affected by weather and sunlight, and there may be deviations.

How to connect to Mi Home App:

Features:

• Easy measurement anytime and anywhere
• Dual-emission with single receiver,millimetre-level measurement precision
• Quick measurement with one hand in different scenarios
• Remote control measurement with your smartphone
• Single button design, easy to operate with one button only

Specifications

Product name: MIJIA Smart Laser Measure

Product model: MJJGCJYD001QW

Measurement range: 0.05*–40m

Measurement precision: ±(3mm + 5 x 10-5 D*)

Minimum display unit: 0.001m

Measurement unit:

Laser type: The wavelength is 630–680nm

Lithium-ion battery: 3.7V⎓370mAh

Display: 1.23-inch LCD screen

Bluetooth transmission distance: About 8m (without obstacles)

Product dimensions: 80 x 35 x 21mm

Product net weight: About 60g

Charging parameters: 5V⎓1A

Operating power: 0.7W (MAX.)

Charging time: About 100min

Automatic turn off time: 180s

Automatic turn off laser time: 180s

Operating temperature: -10°C–50°C

Storage temperature: -20°C–60°C

Storage humidity: 20%–80%RH

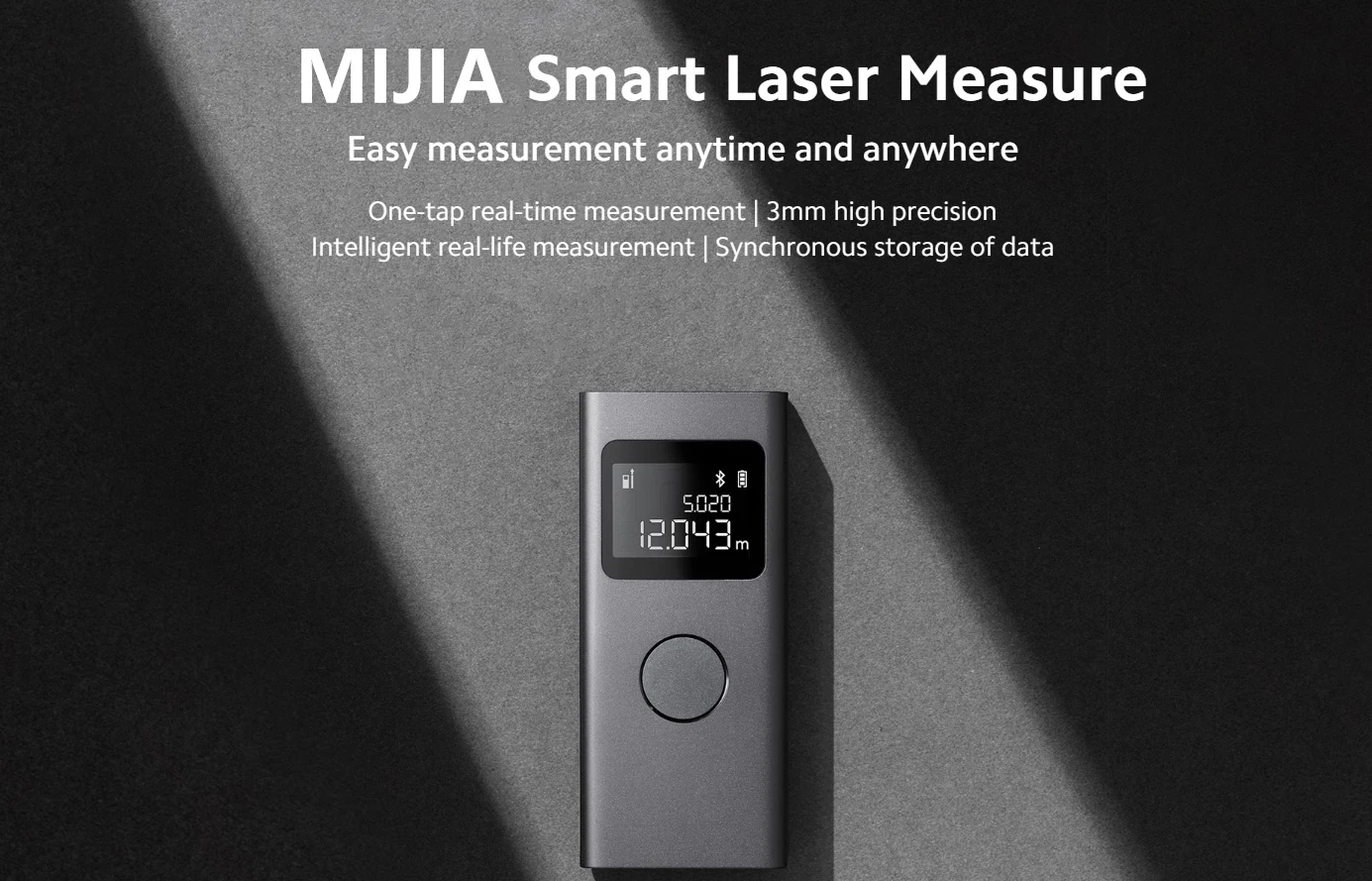

MIJIA Smart Laser Measure

Easy measurement anytime and anywhere

One-tap real-time measurement | 3mm high precision Intelligent real-life measurement | Synchronous storage of data

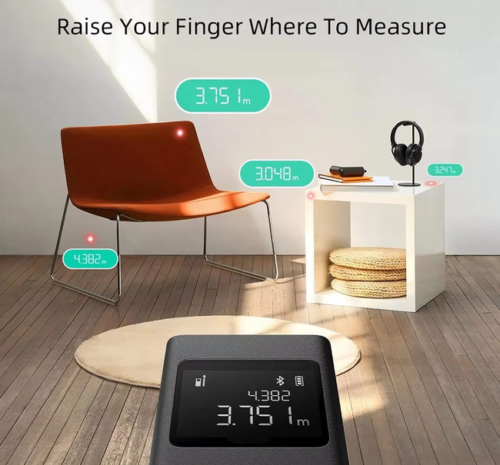

Real time ranging to measure wherever you want

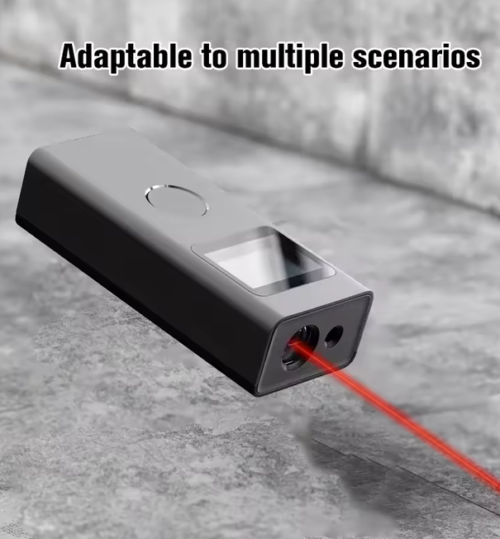

After a brief press to emit the laser, the length can be read in real time.The measure adoptes a precise and stable Class II laser*, which reaches the distance as close as 5cm and as far as 40m. Measure anything anytime.Dual-emission with single receiver

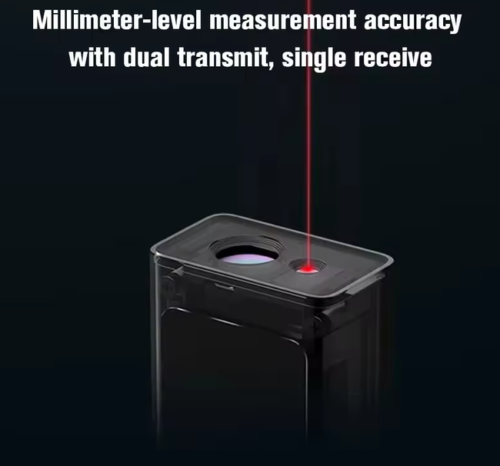

Millimetre-level measurement precision

Equipped with a dual-emission single-receiving laser head. The complex procedures of Laser emission > Calibration > Data Display can be completed instantly. Data precision drops within ±3mm.Quick measurement with one hand in different scenarios

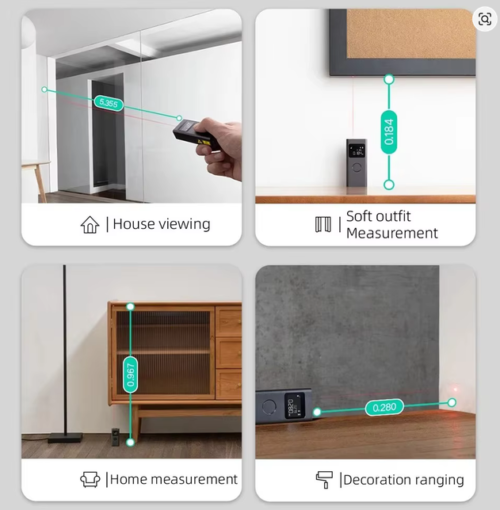

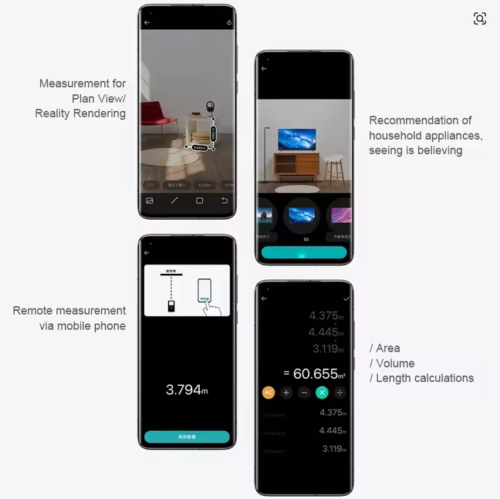

From large areas like a new home or a warehouse, to the door and window sizes, you can tap to see the results on the measure immediately.Expand the functions via the Mi Home/Xiaomi Home app

Ry connectinn a smartphone via Rluetooth vou can link the laser measure with Mi Home/Xiaomi Home app to realise more functions such as data synchronisation/remarks, length/area/volume calculation, floor plan mapping, map sharing, and effect viewing.

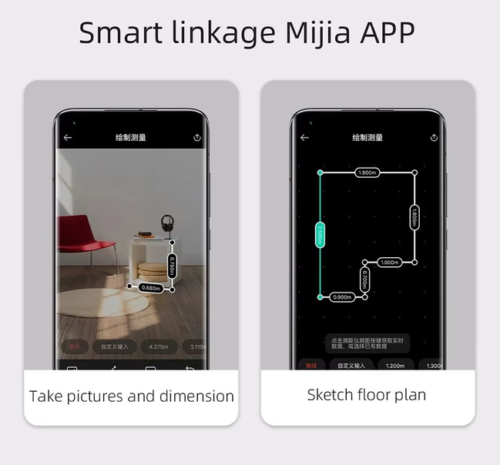

Floor plan with realtime mapping and surveying

You can draw the floor plan directly in Mi Home/Xiaomi Home app or draw and measure with photos. The measured data will be automatically marked to the selected line, and the app will intelligently adjust the line based on the data marked.

Preview with home appliance recommendations

The innovative “See the Effect” function can intelligently recommend suitable home appliances according to the room size and display the effect in real scenes.

Remote control measurement with your smartphone

Your smartphone can be used as “a remote control for measuring distance” to remotely control the measure. It does a great help when the measure must be placed at a fixed point or cannot be meaure the super smooth plane, a narrow gap and or the vertical distance.

Easy calculation of area/volume/length

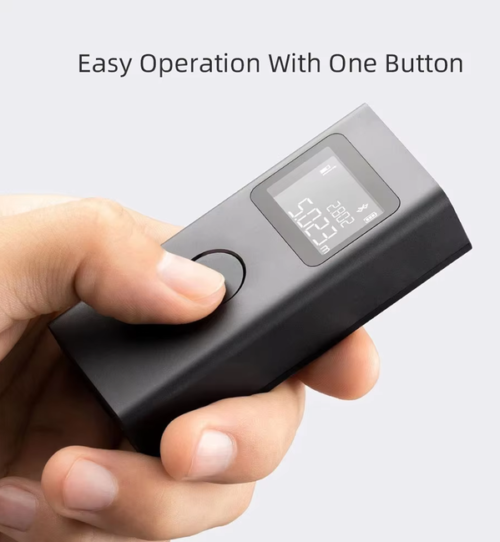

You can flexibly select existing length, width, and height data for the area and volume calculation, or simply add or subtract to calculate the length. Multidimensional scales are at hand.Single button design, easy to operate with one button only

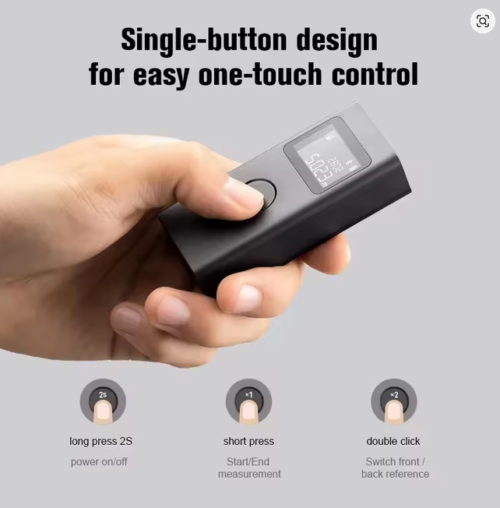

It only has one control button. Long press 2 seconds to start, short press to measure, and double tap to switch the front and back benchmarks. The single-button design makes it easy for you.

• Long press 2 seconds to turn on/off
• Short press to start/end recording measurement data
• Double tap to switch the front and back benchmarks

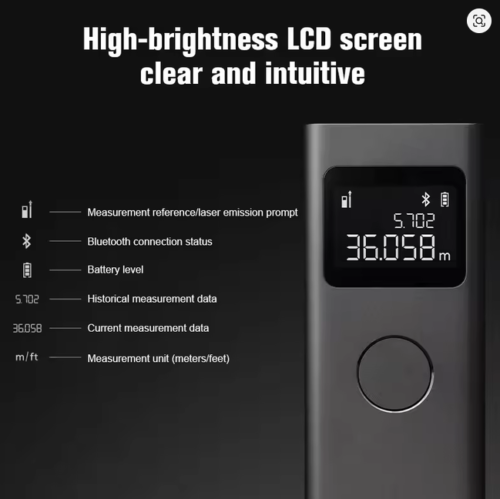

High brightness LCD display, clear and easy

With the high brightness LCD display, the current measurement data, historical measurement data, measurement benchmark, measurement unit, battery status, and Bluetooth connection status are clear at a glance.Dual matte finish Wear and scratch resistance

Lightweight aluminium alloy with high-strength engineering plastics create a delicate matte appearance.Delicate matte texture surface with comfortable touch.Wireless lithium battery Type-C port for easy charging Long-lasting battery life

370mAh high-capacity lithium battery for measuring 3000 sets of data at full charge. Type-C charging port can share charger cable with other electronic devices like smartphone.
